Introduced in 1995, the pouch battery cell has gone into our daily life step by step, from being installed on your iPhone, portable wearables, to being innovated by EVs and renewable energy manufacturers today. Unlike traditional cylindrical or prismatic batteries, a pouch battery cell uses a flexible, heat-sealable aluminum laminate casing instead of a rigid metal shell. It is thinner, lighter, and more adaptable in shape.

By these natures, the compound annual growth rate (CAGR) of the pouch battery cells is higher than the that of prismatic and cylindrical battery cells market, which would reach around 17.5% in 2030, compared with the CAGR of the cylindrical cells of 7.5 – 9%, and the prismatic cells of 14.1% in the same period.

With pouch battery cells expanding nearly twice as fast as cylindrical ones, it’s clear why they deserve attention. This guide will help you understand everything you need to know about pouch battery cells, from how they work and where they’re used to their benefits and challenges.

What is a Pouch Battery Cell?

A pouch battery cell is a type of lithium-ion cell that uses a heat-sealed, flexible aluminum-laminate casing instead of a rigid metal shell. This unique design allows it to be:

• Thinner and lighter
• More adaptable to irregular shapes
• Highly space-efficient, utilizing up to 95% of internal volume

Insides the Pouch Battery Cell: Structure and Components

To truly understand what makes pouch battery cells special, it is helpful to take a look inside. A pouch battery cell consists of the following key components:

Cathode (Positive Electrode)

Typically made of a lithium-based material such as lithium cobalt oxide (LiCoO₂), lithium iron phosphate (LFP), or nickel manganese cobalt oxide (NMC). The cathode stores and releases lithium ions during charging and discharging.

Anode (Negative Electrode)

Usually composed of graphite or other carbon-based materials. It absorbs lithium ions during charging and releases them during discharging.

Separator

A thin, porous membrane (often polyethylene or polypropylene) is placed between the anode and cathode to prevent direct contact while allowing lithium ions to pass through.

Electrolyte

A lithium-ion-conducting liquid or gel that facilitates the movement of ions between the electrodes. It’s typically a solution of lithium salt (e.g., LiPF₆) in an organic solvent.

Aluminum-Laminate Pouch (Outer Casing)

This is the key difference from cylindrical or prismatic cells. The pouch is made of multiple layers, typically including:

• Nylon (outer layer): Provides mechanical strength and puncture resistance
• Aluminum foil (middle layer): Acts as a barrier against moisture and oxygen
• Polypropylene (inner layer): Provides chemical resistance and allows heat sealing

Manufacturing: How is a Pouch Battery Cell Assembled?

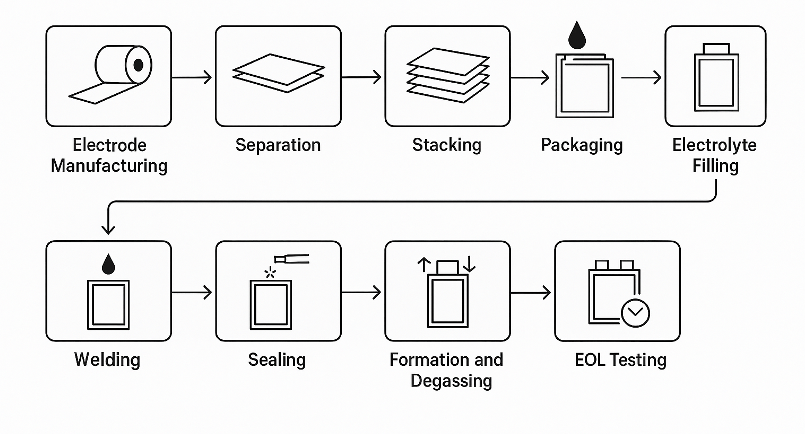

Below is a simplified diagram showing the key steps in the pouch battery assembly process:

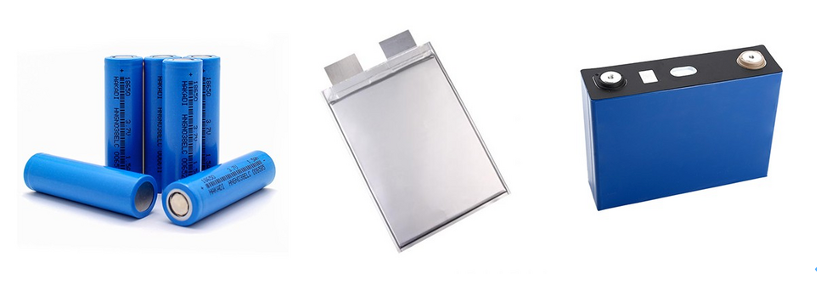

The Difference of Pouch vs. Cylindrical vs. Prismatic Battery Cell

Understanding pouch battery cells becomes clearer when compared to the two other dominant battery formats: cylindrical and prismatic battery cells. They differ in terms of form, working principle, and application flexibility.

CRBAman, CC BY-SA 4.0 , via Wikimedia Commons

The Battery Form

• Cylindrical cells resemble traditional AA batteries, which makes them easy to handle and produce, but their round shape leaves unused gaps when grouped in packs.
• Prismatic cells are more compact and stackable than cylindrical, but their rigid metal case adds weight.
• Pouch cells offer the highest packaging efficiency, with up to 90–95% of the volume usable for active materials, thereby minimizing dead space.

Working Principle: Internal Configuration

All these 3 battery types use the same electrochemical principle—the movement of lithium ions between the anode and cathode through an electrolyte. However, their internal arrangements differ:

Flexibility: Design & Customization

As mentioned earlier, unlike rigid prismatic or cylindrical battery formats, pouch battery cells utilize a flexible aluminum-laminate pouch as the case to match specific product requirements, regardless of the wide range of sizes and thicknesses. This allows for tailored geometries, enabling manufacturers to optimize internal layouts for compactness, balance, and even weight distribution.

The Applications of Pouch Battery Cell

Pouch battery cells, though often unnoticed by users, are widely integrated into many everyday technologies due to their compact design, high energy density, and structural flexibility. These qualities make them preferable for devices with limited internal space and high-performance demands. Here are 3 key applications where pouch cells are commonly used:

Smartphones

Pouch cells are the preferred power source in modern smartphones because their thin, adaptable form fits sleek designs and maximizes capacity within tight spaces. Most flagship iOS and Android devices use pouch batteries to achieve lightweight construction and extended battery life.

GolhaMedia, CC BY-SA 4.0 , via Wikimedia Commons

Emergency Backup Power Systems

From power banks to uninterruptible power supplies (UPS), pouch cells enable compact, portable backup solutions by offering high energy density without increasing size or weight, ensuring reliable power during emergencies or off-grid use.

Sig. Chiocciola, CC0, via Wikimedia Commons

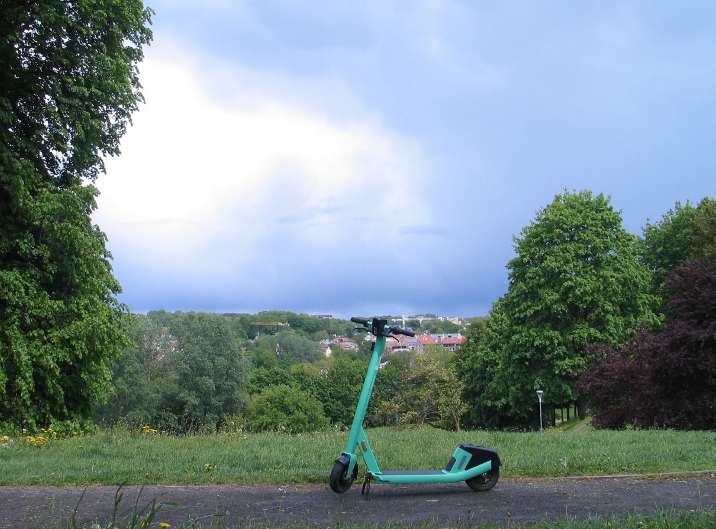

Electric Scooters

In urban commute, pouch cells conform to limited and irregular spaces inside scooter frames, providing better space utilization and lower weight compared to cylindrical cells—key factors for longer range and improved efficiency.

Андрей Романенко, CC BY-SA 4.0 , via Wikimedia Commons

Challenges of Manufacturing the Pouch Battery Cells

Despite their many advantages, pouch battery cells also present several challenges that manufacturers and users must consider.

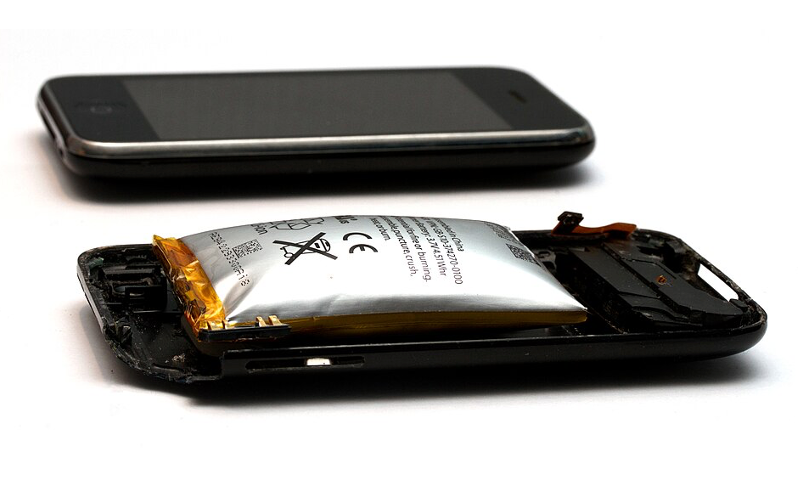

Swelling

Pouch cells are more prone to swelling during charge-discharge cycles due to gas generation inside the soft casing. This can affect the structural integrity of the battery pack and the device housing, potentially leading to reduced performance or safety concerns if not properly managed.

Mpt-matthew at English Wikipedia, CC BY-SA 3.0 , via Wikimedia Commons

Fragility

Compared to rigid cylindrical or prismatic cells, pouch cells have a softer and more flexible casing that makes them susceptible to mechanical damage such as punctures or tears. Careful handling and robust packaging are essential to maintain their reliability and safety.

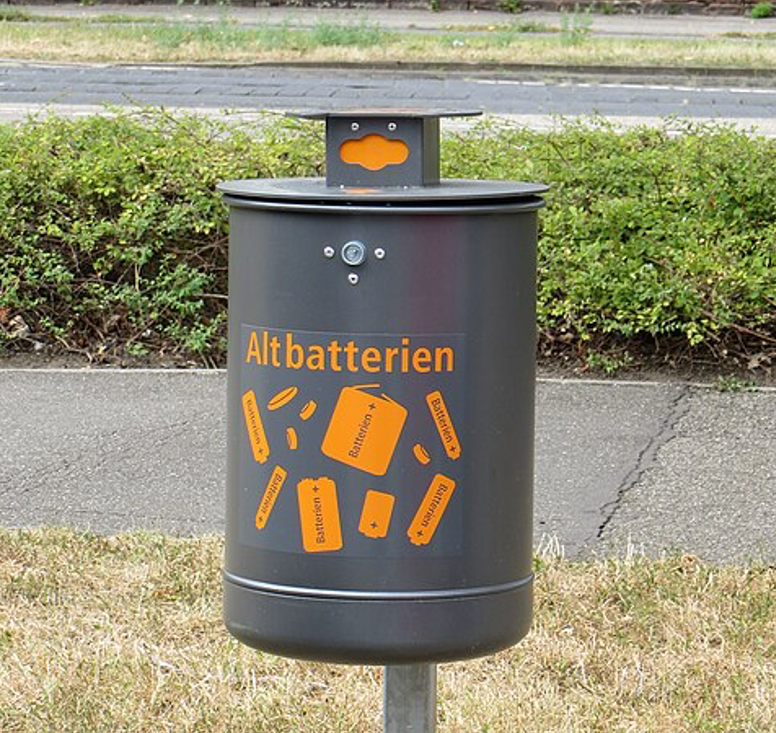

Recycling Challenges

Pouch cells pose unique recycling obstacles due to their soft, flexible polymer casings. It requires more labor-intensive methods to open and separate the layers safely, which presents a series of challenges to the environment and recycling.

Pouch battery cells come in various shapes and sizes, with diverse module/fixation designs. Under such circumstances, pouch battery cells can achieve decent recovery rates when using direct recycling, but that requires controlled and uniform designs—something that current industry heterogeneity prevents.

This variability complicates sorting, pre-treatment, and recycling operations compared to more uniform cylindrical or prismatic battery formats.

Rza3100, CC BY-SA 4.0 , via Wikimedia Commons

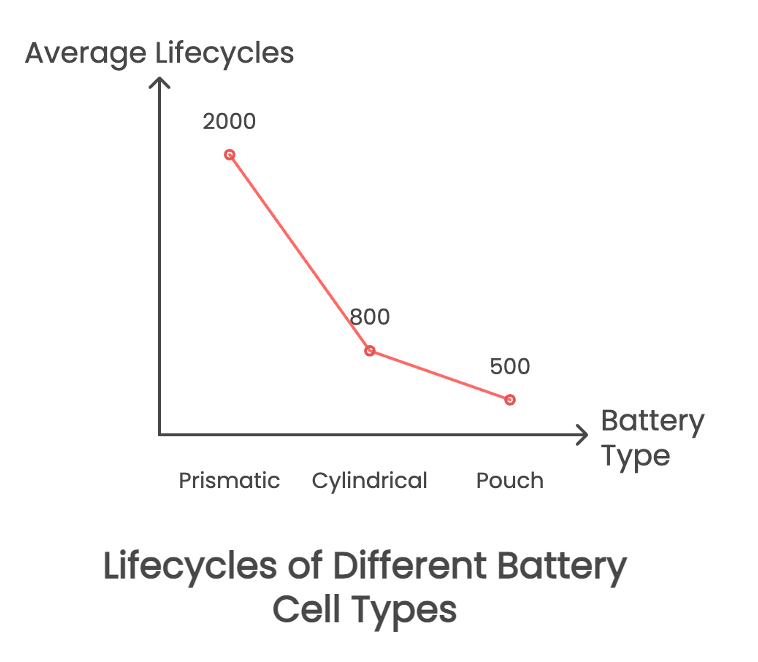

Life Cycle

Pouch cells generally have a shorter lifecycle compared to cylindrical and prismatic cells.

Typical prismatic cells may have lifecycles averaging around 2,000 cycles, while cylindrical cells have a lifespan ranging between 800 to 1400 cycles. In contrast, pouch cells often experience around 500 life cycles.

These challenges emphasize that while pouch battery cells offer a compelling combination of design freedom and energy efficiency, they also demand precise engineering, robust quality assurance, and considered design for recycling. Understanding and addressing these limitations is essential to fully leveraging the benefits pouch battery cells can offer across diverse applications.

Conclusion

Pouch battery cells offer clear advantages in energy density, weight, and design flexibility—making them ideal for compact, high-performance devices. However, they also pose challenges such as swelling, fragility, manufacturing sensitivity, and complex recycling.

Addressing these limitations requires not only smarter design and material innovations but also advanced manufacturing capabilities. LEAD, a global leader in battery manufacturing equipment, plays a critical role in this transformation. By offering state-of-the-art solutions for electrode preparation, cell assembly, and formation systems, LEAD empowers manufacturers to produce high-quality pouch cells with greater efficiency, precision, and environmental control.
